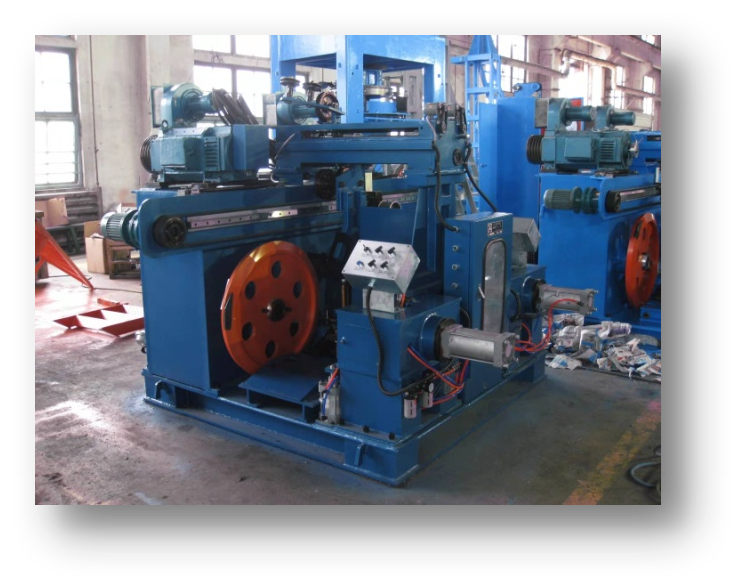

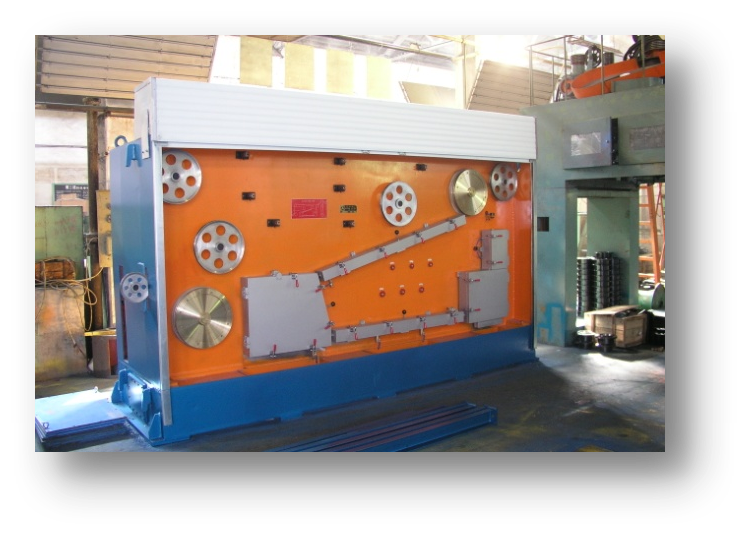

C738-1/ZF(450/13) 铜大拉连续退火机组

C738-1/ZF(450/13) 13-die Large Diameter Copper Wire Drawing and Annealing Machine

该套设备拉丝主机采用卧式直排串联式结构，双电机驱动，实现快速换模。高性能精密斜齿轮传动，效率高，噪音低。线材和拉丝模的冷却及润滑采用浸没式。连续退火装置采用二段式电阻退火形式，组合式接触导电轮，轮圈更换方便。退火电压自动跟踪线材速度，线材退火质量高。退火采用蒸汽保护，并自带水循环冷却控制，线材延伸率稳定。接触轮轴采用独立的风冷系统。主要电气控制元件采用国际著名品牌。

The drawing main machine adopts horizontal linear tandem type and is driven by double motors, which can realize a quick die-change. The helical gear transmission is efficient with low noise. It uses immerging cooling and lubricating for the wire and drawing die. Continuous annealing device adopts two-stage resistance annealing and  built-up type touching conductive wheel. It is easy to change the wheel rim. The annealing voltage tracks the wire drawing speed automatically, which will have high annealing quality. The annealing with steam protection and water circulation cooling control will makes the wire extension ratio steady. The separated air cooling system is applied to the touch wheel axis. The main electric control elements adopt the international famous brand.

C733-16/ZF(450/13)铝合金（铝）大拉机

C733-16/ZF(450/13) Aluminum Alloy (Aluminum)Wire Drawing Machine

设备特点 Machine characteristics

1. 采用卧式直排串联式结构

Adopting straightly horizontal tandem type structure

2.线材和拉丝模的冷却及润滑采用浸没式。双电机驱动，实现快速换模。

It uses immerging cooling and lubricating for the wire and drawing die. Driven by double motors  can realize a quick die-change.

3.高性能精密斜齿轮传动，效率高，噪音低。主要电气控制元件采用国际著名品牌。

The helical gear transmission is efficient with low noise. The main electric control elements adopt the international famous brand.

C732-4/Z型 全浸式中拉连续退火机组

C732-4/Z Full-immerging Middle Diameter Wire Drawing and Annealing Machine

设备特点：采用全数字控制，收线张力调节由PLC实现自动跟踪，全线恒张力运行。

Machine characteristics: fully digital control; the take-up tension adjustment tracked by PLC automatically; all line running with constant tension.

进线直径 inlet diameter                                               φ3.5mm

出线直径 Outlet diameter                                          φ1.6mm-0.4mm

最高机械速度 Max. mechanical speed                    32m/s

模具数量 Quantity of the drawing die                         17

定速轮直径 Capstan diameter                               φ250mmmm

塔轮最大直径 Max. diameter of the stepped pulley     φ250mm

塔轮级数 Steps of the stepped pulley                          4级steps

主电机功率 Main motor power                                       55KW  AC

退火线径 Wire annealing diameter                            φ1.6mm-0.4mm

退火速度 Annealing speed                                              32m/s

退火电压 Annealing voltage                                           DC70V

退火电流 Annealing current                                       DC1500A

退火方式：直流接触式三角形退火系统，全自动跟踪控制。

Annealing way:  DC contact-type triangle annealing system and fully automatic tracking control.

收线电机 Take-up motor                                          15KW  AC

排线方式：光杆排线或丝杠排线

Traversing way: polish rod traverse or ball-screw traverse

收线盘尺寸 Take-up reel size                                     PND500  PND630

设备重量 Machine weight                                                 11000Kg

铝合金（铝）中拉机、小拉机

Fine and Middle Aluminum Alloy (Aluminum) Wire Drawing Machine

多头连续小拉退火机

Fine Multi Wire Continuous Drawing and Annealing Machine

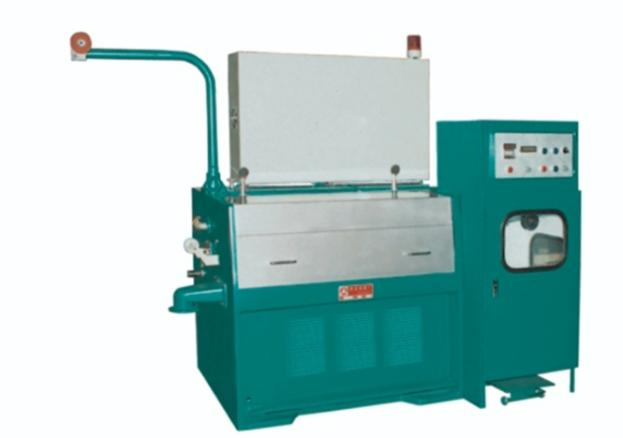

细线拉丝退火机

Thin Wire Drawing and Annealing Machine

高速绞线机（束绞机）系列

Series of High Speed Bunching Machines

L65554型退火镀锡机

L65554 Annealing and Tinning Machine
