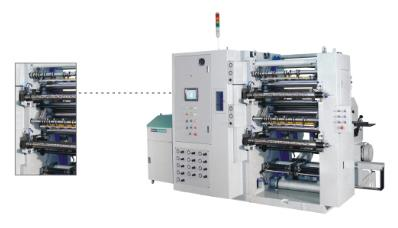

J70500-17/ZF化成铝膜分切机
J70500-17/ZF Aluminum Foil Slitting Machine
| 名称 Name | J70500-17/ZF化成铝膜分切机 J70500-17/ZF Aluminum foil slitting machine |
| 原料直径 Diameter of the raw material roll | Max. Φ500mm |
| 原料宽度 Width of the raw material roll | Max.600mm |
| 原料内径 ID of the raw material roll | 3′ |
| 原料厚度 Thickness of the raw material | 0.02-0.12mm |
| 分切宽度 Slitting width | Min. 5mm |
| 收卷直径 Diameter of winding | Max. Φ450mm |
| 收卷轴直径 Diameter of the take-up reel | 3′ |
| 分切速度 Slitting speed | Max. 200m/min |
| 切割方式 Slitting mode | Circular cutter |
| 卷曲方式 Winding mode | 中心+表面驱动；前后两组同时收卷 Center and surface drive; synchronous take-up of the upper and lower groups |

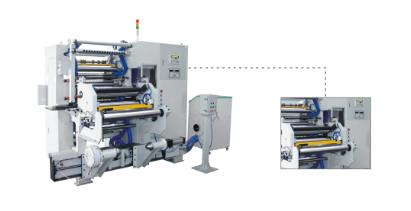

K90500-9/ZF 500mm铝箔复卷机检查机
K90500-9/ZF 500mm Aluminum foil rewinding and checking machine
| K90500-9/ZF 500mm铝箔复卷机检查机 K90500-9/ZF 500mm Aluminum foil rewinding and checking machine |
| 1.用途 Application: 将铝箔成品重新卷绕，以解决粘箔问题 Rewind the aluminum foil product to solve the problem of adherence 通过卷绕过程，检查产品质量缺陷 Check the products quality in the rewinding process 将不合格重量的产品绕城小卷 Unqualified products in weight will be to rewind to small rolls |
| 2.原料规格：厚0.05-0.11mm；宽500mm；最大外径800mm；最大卷重600kg Raw material specifications: thickness 0.05-0.11mm; width 500mm; Max. OD 800mm; Max. coil weight 600kg |
| 3. 重卷后成品规格与原料卷一样 The specifications of the products are as same as that of raw material |
| 4. 运行速度 Running speed: 25-150m/min；工作速度 Working speed: 25-150/min |
| 5. 收卷张力范围：30-800N，张力无极可调 Take-up tension: 30-800N, stepless adjustment |
| 6. 复卷后的材料应保证端面整齐，错层误差≤±0.1mm,塔形误差≤±0.15mm，材料表面无擦伤压痕、无拉伸变形，复卷后单位面积重量无变化。 The end face of the products after rewinding is neatly; the layer offset tolerance ≤±0.1mm; pyramid tolerance≤±0.15mm; there is no scratch, indentation and tensile deformation on the material surface; there is no change for the weight per unit area after rewinding. |
| 7. 恒张力控制系统，纠偏控制系统，气路系统均采用进口件 Use imported parts for the constant tension control system, deviation rectification control system and gas path system. |
| 8. 电气系统采用PLC和触摸控制，主要电器元件采用进口件 The electrical system uses PLC and touch screen control. The main electrical parts are imported. |
| 9. 整机外形尺寸 Overall dimension: 2700mm*1600mm*1700mm |
| 10. 重量：主机4500kg，电器箱100kg Weight: 4500kg (main machine); 100kg (electrical cabinet) |
500mm切纸切箔机
500mm Paper and Foil Slitting Machine
| 名称 Name | J70500-3/ZF切纸切箔机 J70500-3/ZF Paper and foil slitting machine | J70500-5A/ZF变频调速恒张力切纸切箔机 J70500-5A/ZF Frequency control and constant tension paper and foil slitting machine |
| 用途 Application | 设备用于分切厚度0.006-0.06mm 的纸或铝箔（腐蚀箔） To slit paper and aluminum foil of thickness 0.006-0.06mm | 切割厚度0.006-0.06mm的纸或铝箔（腐蚀箔） To slit paper and aluminum foil of thickness 0.006-0.06mm |
| 原料卷直径 Diameter of the raw material roll | Max. Φ500mm | Max. Φ500mm |
| 原料卷宽度 Width of the raw material roll | Max.500mm | Max.500mm |
| 原料卷内径 ID of the raw material roll | Φ35-75mm | Φ35-75mm |
| 成品卷宽度 Width of the product strip | Min. 5mm | Min. 2.2mm |
| 成品卷直径 Diameter of the product roll | Max. Φ270mm | Max. Φ270mm |
| 切割条数 Strips | Max.49 strips | Max.49 strips |
| 收卷轴直径 Diameter of the take-up reel | Φ40mm,75mm | Φ40mm,75mm |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 | 2 |
| 切割方式 Slitting mode | 圆盘刀 Circular cutter | 圆盘刀 Circular cutter |
| 分切速度 Slitting speed | Max. 140m/min | Max. 150m/min |
| 切割厚度 Slitting thickness | 0.006-0.06mm | 0.006-0.06mm |
| 主电机 Main motor | 2.2kw | 3kw |
| 主要功能 Main functions | 采用双差动驱动方式进行收卷，直流调速，可加吸尘装置 Adopt dual-differential drive mode to wind; DC speed adjustment; allow to add the dust extraction device | 采用双差动驱动方式进行收卷，变频调速，恒张力系统，可加吸尘装置 Adopt dual-differential drive mode to wind; frequency control of speed; constant tension system; allow to add the dust extraction device |
| 外形尺寸 Overall size | 1170mm*1032mm*1283mm | 1170mm*1032mm*1283mm |
| 重量 Weight | 1000kg | 1000kg |
J70500-12/ZF 500mm铜箔分切机
J70500-12/ZF 500mm Copper Foil Slitting Machine
| 名称 Name | J70500-12/ZF 500mm 铜箔分切机 J70500-12/ZF 500mm Copper foil slitting machine |
| 用途 Application | 将成卷的铜箔切割至所需的宽度后绕成卷 To slit the roll of copper foil to required width and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ550mm |
| 原料卷宽度 Width of the raw material roll | Max.500mm |
| 原料卷内径 ID of the raw material roll | Φ75-300mm |
| 收卷外径 OD of winding | Max. Φ550mm (宽度50mm以上 width is more than 50mm) |
| 收卷轴直径 Diameter of the take-up reel | Φ75mm (用户自定 determined by user) |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 |
| 切割厚度 Slitting speed | 20-150m/min |
| 分切后度 Slitting thickness | ＜0.12; 成品最小切割宽度 Min. width of the product strips: 6mm |
| 主传动电机 Main motor | Y132M-4; 7.5kw 1500rpm |
| 外形尺寸 Overall size | 主机 Main machine1700*1450*1400(mm) 控制箱 Control box 975*670*1030(mm) |
| 重量 Weight | 3000kg |
J70600-2/ZF 600mm切纸切箔机
J70600-2/ZF 600mm Paper and Foil Slitter
| 名称 Name | J70600-2/ZF 600mm 切纸切箔机 J70600-2/ZF 600mm Paper and Foil Slitter |
| 用途 Application | 将成卷的电容器纸，铝箔纸，薄膜切割至所需的宽度后卷绕成卷 To slit capacitor paper, aluminum foil and the thin film to the required width and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ600mm |
| 原料卷宽度 Width of the raw material roll | Max.600mm |
| 原料卷内径 ID of the raw material roll | Φ50-85mm |
| 成品卷宽度 Width of the product roll | Min. 6mm (铝箔 aluminum foil 10mm) |
| 成品卷直径 Diameter of the product roll | Max. Φ350mm (宽度50mm以上 width is more than 50mm) |
| 剪切条数 Strips | Max.59 strips |
| 收卷轴直径 Diameter of the take-up reel | Φ50mm,75mm |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 |
| 切割方式 Slitting mode | 圆盘刀 Circular cutter |
| 分切速度 Slitting speed | Max. 150m/min |
| 切割厚度 Slitting thickness | 0.006-0.15mm(铝箔 aluminum foil 0.01-0.08mm) |
| 主传动电机 Main motor | 3kw |
| 主要功能 Main functions | 变频调速，配有静电消除装置及吹边装置 Frequency control of speed; static elimination device and edge blowing device |
| 外形尺寸 Overall size | 1540mm*1164mm*1410mm |
| 重量 Weight | 2500kg |
| 名称 Name | J70700-15/ZF 700mm 分切机 J70700-15/ZF 700mm Film slitting machine | J70700-3/ZF 700mm 大700m 分切机 J70700-3/ZF 700mm Film slitting machine | J7010Ⅱ-2/ZF 1000mm 分切机 J7010Ⅱ-2/ZF 1000mm Film slitting machine |
| 用途 Application | 将成卷的电容器纸，铝箔纸，薄膜切割至所需的宽度后卷绕成卷 To slit capacitor paper, aluminum foil and the thin film to the required width and rewind. | 将成卷的电容器纸，薄膜切割至所需的宽度后卷绕成卷 To slit capacitor paper and the thin film to the required width and rewind. | 将成卷的电容器纸，铝箔，薄膜切割至所需的宽度后卷绕成卷 To slit capacitor paper, aluminum foil and the thin film to the required width and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ550mm | Max. Φ760mm | Max. Φ800mm |
| 原料卷宽度 Width of the raw material roll | Max.700mm | Max.700mm | Max.1000mm |
| 原料卷内径 ID of the raw material roll | Φ50-85mm | Φ76-90mm | Φ76mm |
| 成品卷宽度 Width of the product strip | Min. 6mm(铝箔 aluminum foil 10mm) | Min.6mm | Min.5mm |
| 成品卷直径 Diameter of the product roll | Max. Φ350mm (宽度40mm以上 width more than 40mm) | Max. Φ500mm (宽度50mm 以上 width more than 50mm) | Max. Φ500mm (宽度40mm 以上 width more than 40mm) |
| 条数 Strips | Max.59 strips | Max.59 strips | Max.59 strips |
| 收卷轴直径 Diameter of the take-up reel | Φ40mm,75mm | Φ76mm | Φ75mm |
| 同时收卷轴数量Quantity of synchronous take-up reels | 2 | 2 | |
| 切割方式 Slitting mode | Circular cutter 圆盘刀 | Circular cutter 圆盘刀 | Circular cutter 圆盘刀 |
| 分切速度 Slitting speed | Max. 150m/min | Max. 150m/min | Max. 200m/min (宽度40mm以上 width more than 40mm) |
| 切割厚度 Slitting thickness | 0.006-0.06mm (铝箔 aluminum foil 0.01-0.03mm) | 0.03-0.1mm | 0.03-0.1mm |
| 纠偏精度 Error-correction precision | ±0.2~±0.5mm | ±0.2~±0.5mm | |
| 主电机 Main motor | 3kw | 5.5kw | 7.5kw |
| 主要功能 Main functions | 变频调速，配有静电消除及吹边装置 Frequency control of speed; static elimination device and edge blowing device | 变频调速 Frequency control of speed | 变频调速，配有静电消除及吹边装置 Frequency control of speed; static elimination device and edge blowing device |
| 外形尺寸 Overall size | 1605mm*1084mm*1310mm | 1690mm*1770mm*1560mm | 2410mm*1250mm*1460mm |
| 重量 Weight | 2800kg | 3500kg | 4500kg |
J70700-18/ZF 700mm超薄金属化膜分切机
J70700-18/ZF 700mm Ultra Thin Metalized Films Slitter
| 名称 Name | J70700-18/ZF 700mm 超薄金属化膜分切机 J70700-18/ZF 700mm Ultra Thin Metalized Films Slitter |
| 用途 Application | 将成卷的金属化膜切割成所需宽度后卷绕成卷 To slit the roll of the metalized Films to the required width and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ600mm |
| 原料卷宽度 Width of the raw material roll | Max.700mm |
| 原料卷内径 ID of the raw material roll | 3′′-6′′ |
| 收卷直径 Diameter of take-up | Φ120mm-320mm (宽度30mm 以上 width is more than 30mm) |
| 产品卷宽度 Width of the product roll | Min. 4.5mm |
| 纠偏精度 Error-correct precision | ±0.06mm |
| 切割厚度 Slitting thickness | OPP films 0.004-0.01mm, PET films 0.002-0.01mm |
| 收卷轴直径 Diameter of the take-up reel | Φ75mm |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 |
| 分切速度 Slitting speed | 25-280m/min (无极可调 stepless adjustable) |
| 供电总功率 Total power supply | 10KVA, AC 380V |
| 赋能电压 Energized voltage | DC50V/um Max. 900V |
| 原料卷重量 Weight of the raw material roll | ＜120kg |
| 外形尺寸 Overall size | Main machine 1550mm*1200mm*1300mm |
J70700-28/ZF 700mm金属化膜波浪刀分切机
J70700-28/ZF 700mm Metalized Films Wavy Blade Slitter
| 名称 Name | J70700-28/ZF 700mm金属化膜波浪刀分切机 J70700-28/ZF 700mm Metalized Films Wavy Blade Slitter |
| 用途 Application | 将成卷的金属化膜切割成所需宽度后卷绕成卷 To slit the roll of the metalized Films to the required width and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ600mm |
| 原料卷宽度 Width of the raw material roll | Max.700mm |
| 原料卷内径 ID of the raw material roll | 3′′-6′′ |
| 收卷直径 Diameter of take-up | Φ120mm-320mm(width is more than 30mm) |
| 纠偏精度 Error-correct precision | ±0.06mm |
| 切割厚度 Slitting thickness | OPP films 0.004-0.01mm, PET films 0.002-0.01mm) |
| 收卷轴直径 Diameter of the take-up reel | Φ75mm |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 |
| 分切速度 Slitting speed | 25-280m/min (stepless adjustable) |
| 供电总功率 Total power supply | 10KVA, AC 380V |
| 赋能电压 Energized voltage | DC50V/um Max. 900V |
| 原料卷重量 Weight of the raw material roll | ＜120kg |
| 外形尺寸 Overall size | Main machine 1550mm*1200mm*1300mm |
J70700-10/ZF 700mm金属化膜分切机
J70700-10/ZF 700mm Metalized Films Slitter
| 名称 Name | J70700-10/ZF 700mm金属化膜分切机 J70700-10/ZF 700mm Metalized Films Slitter |
| 用途 Application | 将成卷的OPP，PET，金属化镀铝膜，镀锌膜切割至所需的宽度后卷绕成卷 To slit OPP films, PET films, aluminized films and the galvanized films to the required width and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ530mm |
| 原料卷宽度 Width of the raw material roll | Max.700mm |
| 原料卷内径 ID of the raw material roll | Φ75-150mm |
| 成品卷宽度 Width of the product roll | Min. 4.5mm |
| 成品卷直径 Diameter of the product roll | Max. Φ330mm (宽度30mm以上 width is more than 30mm) |
| 条数 Strips | Max.80 strips |
| 收卷轴直径 Diameter of the take-up reel | Φ75mm |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 |
| 切割方式 Slitting mode | Dangling cutter 悬空刀 |
| 分切速度 Slitting speed | Max. 280m/min |
| 切割厚度 Slitting thickness | OPP films 0.004-0.015mm, PET films 0.002-0.01mm) |
| 赋能电压 Energized voltage | DC50V-900V |
| 纠偏精度 Error-correct precision | ±0.1mm |
| 主电机 Main motor | 2.2kw |
| 主要功能 Main functions | 具有自动纠偏系统，恒张力系统（采用美国蒙特福），赋能装置，静电消除装置，PLC控制 Automatic error-correction system; constant tension system (MONTALVO); energized device; static elimination device; PLC control |
| 外形尺寸 Overall size | 1950mm*1200mm*1300mm |
| 重量 Weight | 1300kg |
J70800-9/ZF 800mm 铝箔分切机
J70800-9/ZF 800mm Aluminum Foil Slitting Machine
| 名称 Name | J70800-9/ZF 800mm 铝箔分切机 J70800-9/ZF 800mm Aluminum Foil Slitting Machine |
| 原料卷直径 Diameter of the raw material roll | Max. Φ650mm |
| 原料卷宽度 Width of the raw material roll | Max.800mm |
| 原料卷内径 ID of the raw material roll | 3′′, 6′′ |
| 原料卷厚度 Thickness of the raw material roll | 0.006-0.06mm |
| 分切宽度 Width of the product strips | Min. 50mm |
| 收卷直径 Diameter of the take-up | Φ350mm |
| 收卷轴直径 Diameter of the take-up reel | 3′′ |
| 分切速度 Slitting speed | 300m/min |
| 切割方式 Slitting mode | 直刀片 Straight cutter (刀槽轴 cutter groove shaft) |
| 收卷方式 Take-up mode | 中心驱动，上下两组同时收卷 Center drive; take-up synchronously by upper and lower groups |
| 卸料方式 Discharge mode | 旋臂式卸料 Swing-arm type |
H52800/ZF 800mm 铝纸复合机
H52800/ZF 800mm Aluminum Paper Combination Machine
| 名称 Name | H52800/ZF 800mm 铝纸复合机 H52800/ZF 800mm Aluminum paper combination machine |
| 用途 Application | 将成卷的铝箔和纸复合，烘干，涂蜡后卷绕成卷 Combine the aluminum foil and paper, dry, wax, and rewind to coils. |
| 铝箔卷直径 Diameter of aluminum foil coil | Max. Φ350mm |
| 纸卷直径 Diameter of paper coil | Max. Φ800mm |
| 原料卷内径 ID of the material coil | Φ50mm-Φ75mm |
| 原料卷宽度 Width of the material coil | Max.800mm |
| 成品卷直径 Diameter of the product coil | Max. Φ400mm |
| 复合最高速度 Recombination velocity | Max.150m/min |
| 烘干温度 Drying temperature | 70-100℃ |
| 浸蜡温度 Waxdip temperature | 130-180℃ |
| 主要特点 Main features | 复合速度高，采用多电机传动，恒张力收卷，自动接料，自动完成收卷转换 High combination speed, multi-motor driving, constant tension take-up, material receiving automatically, automatically exchanging for take-up |
| 传动电机 Driving motor | 5.5kw two sets |
| 外形尺寸 Overall size | 7500mm*2200mm*2800mm |
800mm声学膜加热复合机
800mm TFAT Heating and Combination Machine
| 型号 Model | H52800∕ZF型 |
| 用途 Application | 用于多种材料复合成声学膜。用于电子、通讯行业的声学膜材料加工。 Compound kinds of materials to TFAT. This machine is used to process TFAT in electron industry and communication industry. |
| 特点 Features | 采用每次两层材料复合技术，多种材料通过多次复合达到进口设备的复合结果。 Compound two layers of materials once. compound kinds of materials by many times to achieve the effect by imported compounding machine. |
| 复合原料 Materials for compounding | peek、胶膜 coating、pu、硅胶膜 silicone membrane等 |
| 原料最大直径 Diameter of the material | Max.Ф300mm |
| 原料最大宽度 Width of the material | Max. 800mm |
| 原料卷内径 ID of the material | 3”（气胀轴 air-expansion shaft） |
| 原料厚度 Thickness of the material | 0.002—0.1mm |
| 最高复合速度 Compounding speed | Max. 50m∕min |
| 复合方式 Compounding mode | 加热胶辊+加热钢辊 Heating rubber roll+ Heating steel roll |
| 成品卷最大直径 Product roll diameter | Max.Ф300mm |
| 收卷轴直径 Take-up shaft diameter | 3”（气胀轴 air-expansion shaft） |
| 电源 Power supply | 三相 three phase AC380V±10%,50Hz，30kw |
| 设备体积 The machine volume | 2700×1900×1720（长 length×宽 width×高 height） |
H521000/ZF 1000mm铝箔压花机
H521000/ZF 1000mm Aluminum Foil Embossing Machine
| 名称 Name | H521000/ZF 1000mm铝箔压花机 H521000/ZF 1000mm Aluminum Foil Embossing Machine |
| 用途 Application | 将铝纸复合材料压出所需花型后卷绕成卷 To emboss the aluminum paper composite material and rewind to coils. |
| 原料直径 Diameter of the raw material | Φ500mm |
| 压花有效宽度 Efficient embossing width | 800mm |
| 原料卷内径 ID of the raw material coil | 3′′ |
| 收卷直径 Take-up diameter | Φ500mm |
| 收卷轴直径 Diameter of take-up reel | 3′′ |
| 运行速度 Running speed | 100m/min |
| 外形尺寸 Overall dimension | 2480*1540*1060mm |
J7010Ⅱ-10/ZF 1000mm云母带分切机
J7010Ⅱ-10/ZF 1000mm Mica Tape Slitting Machine
| 名称 Name | J7010Ⅱ-10/ZF 1000mm云母带分切机 J7010Ⅱ-10/ZF 1000mm Mica tape slitting machine |
| 用途 Application | 将成卷的云母带分切成所需的宽度后卷绕成卷 To slit the mica tape roll to the required width and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ600mm |
| 原料卷宽度 Width of the raw material roll | Max.1000mm |
| 原料卷内径 ID of the raw material roll | Φ76mm |
| 成品卷宽度 Width of the product roll | Min. 25mm |
| 成品卷直径 Diameter of the product roll | Max. Φ350mm |
| 条数 Strips | Max.40 条strips |
| 收卷轴直径 Diameter of the take-up reel | Φ25mm (配收卷支撑机构 with take-up support mechanism) Φ39.8mm (配收卷支撑机构 with take-up support mechanism) Φ50.2mm |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 |
| 切割方式 Slitting mode | 圆盘刀 Circular cutter |
| 分切速度 Slitting speed | Max. 0-150m/min |
| 分切厚度 Slitting thickness | 0.08-0.2mm |
| 主电机 Main motor | Y132M-4, N=7.5kw, n=1440r/min |
| 外形尺寸 Overall size | 2600mm*1300mm*1550mm |
| 重量 Weight | 2000kg |
J7011Ⅱ-8/ZF 1100mm切纸切箔机
J7011Ⅱ-8/ZF 1100mm Paper and Foil Slitting Machine
| 名称 Name | J7011Ⅱ-8/ZF 1100mm切纸切箔机 J7011Ⅱ-8/ZF 1100mm Paper and foil slitting machine |
| 用途 Application | To slit the roll of paper and thin film to the required width and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ800mm |
| 原料卷宽度 Width of the raw material roll | Max.1100mm |
| 原料卷内径 ID of the raw material roll | Φ50-85mm |
| 成品卷宽度 Width of the product roll | Min. 600mm(width more than 12mm) Min. 200mm(width more than 6mm) |
| 成品卷直径 Diameter of the product roll | Max. Φ600mm |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 |
| 切割速度 Slitting speed | 0- 200m/min |
| 分切厚度 Slitting thickness | 0.01-0.15mm |
| 气源压力 Air pressure | 0.5-0.7Mpa |
| 主电机 Main motor | Y132M-4 7.5kw, 1440转/分rpm |
| 外形尺寸 Overall size | 主机 Main machine 2750mm*2200mm*1260mm 控制箱Control box 600mm*500mm*1600mm |
| 重量 Weight | 主机 Main machine 3000kg 控制箱 Control box 100kg |
J7014Ⅱ/ZF 1400mm 薄膜加热分切机
J7014Ⅱ/ZF 1400mm Thin Film Heating Slitting Machine
| 名称 Name | J7014Ⅱ/ZF 1400mm Thin film heating slitting machine |
| 用途 Application | 将成卷的聚氯乙烯薄膜加热分切成所需宽度后卷绕成卷 To heat the PVC film roll and slit to the required width, and rewind. |
| 原料卷直径 Diameter of the raw material roll | Max. Φ500mm |
| 原料卷宽度 Width of the raw material roll | Max.1300mm |
| 原料卷内径 ID of the raw material roll | Φ76.2mm |
| 原料卷重量 Weight of the raw material roll | Max.500kg |
| 收料卷外径 OD of take-up roll | Max. 500mm |
| 收料卷内经 ID of take-up roll | Φ76.2mm |
| 切割厚度 Slitting thickness | 0.05-0.5mm |
| 分切方式 Slitting mode | 悬空刀片分切 Dangling knives slitting |
| 分切宽度 Slitting width | Min.10mm |
| 分切速度 Slitting speed | 0-15m/min |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 |
| 加热调节控制温度 Heating temperature control | 50-200℃ |
| 纠偏精度 Error-correct precision | 0.1 |
| 供电电压 Power supply voltage | AC 380V |
| 电动机 motor | 7.5kw, 1440r/min |
| 外形尺寸 Overall size | 4600mm*2115mm*1610mm |
| 重量 Weight | 5500kg |
J7017 Ⅱ/ZF 1700mm 光学膜分切机
J7017 Ⅱ/ZF 1700mm Optical Film Slitting Machine
| 名称 Name | J7017 Ⅱ/ZF 1700mm 光学膜分切机 J7017 Ⅱ/ZF 1700mm Optical film slitting machine |
| 原料卷直径 Diameter of the raw material roll | Max. Φ700mm |
| 原料卷宽度 Width of the raw material roll | Max.1700mm |
| 原料卷内径 ID of the raw material roll | 3′，6′ |
| 原料厚度 Thickness of the raw material | 0.02-0.35mm |
| 分切条宽度 Slitting width of the strips | Min. 300mm |
| 收卷直径 Diameter of winding | Max. Φ600mm |
| 收卷轴直径 Diameter of the take-up reel | 3′，6′ |
| 分切速度 Slitting speed | 20m/min |
| 切割方式 Slitting mode | Air knife |
| 收卷方式 Winding mode | Center drive; synchronous take-up of the upper and lower groups |
| 边料宽度 Width of the rim charge | 10-20mm |
| 边料收卷直径 Winding diameter of the rim charge | Φ400mm (spiral winding) |
| 电源 Power supply | Three-phase 380V ±10%, 50Hz,20kw |
| 外形尺寸 Overall size | 4200mm*3200mm*2100mm |
| 选配件 Optional accessory | 料卷装卸车 Material roll loader |
| 名称 Name | J70700-24/ZF 电池极片分切机 J70700-24/ZF Battery pole piece slitting machine | J70500-28/ZF 电池极片分切机 J70500-28/ZF Battery pole piece slitting machine |
| 用途 Application | 用于分切锂离子电池的电极材料 To slit the electrode material of Li-ion battery | 用于分切锂离子电池的电极材料 To slit the electrode material of Li-ion battery |
| 原料卷直径 Diameter of the raw material roll | Max. Φ600mm | Max. Φ600mm |
| 原料卷宽度 Width of the raw material roll | Max.700mm (常用 usually use 650mm) | Max.520mm |
| 原料卷内径 ID of the raw material roll | Φ75mm (两端锥套 taper sleeves of both ends) | Φ75mm (两端锥套 taper sleeves of both ends) |
| 成品卷直径 Diameter of the product roll | Max. Φ450 (宽度30mm以上 width is more than 30mm) | Max. Φ450 (宽度30mm以上 width is more than 30mm) |
| 成品卷最小宽度 Width of the product strip | Min. 36mm | Min.30mm |
| 放卷纠偏精度 Error-correct precision of pay-off | ±0.1mm | ±0.01mm |
| 切割厚度 Slitting thickness | 总厚度Total thickness 100-350μm, 铝箔Aluminum foil 10-30μm, 铜箔copper foil 8-20μm | 总厚度Total thickness 100-350μm, 铝箔Aluminum foil 10-30μm, 铜箔copper foil 8-20μm |
| 收卷轴直径 Diameter of the take-up reel | 3′′ (气胀机械滑差轴 mechanical air slip shaft) | 3′′ (气胀机械滑差轴 mechanical air slip shaft) |
| 同时收卷轴数量 Quantity of synchronous take-up reels | 2 | 2 |
| 分切速度 Slitting speed | 50m/min (连续可调 adjustable continuously) 正常速度 common speed 5-30m/min | 50m/min (连续可调 adjustable continuously) 正常速度 common speed 5-30m/min |
| 电源 Power supply | 三相四线式 Three-phase four-wire 380V | 三相四线式 Three-phase four-wire 380V |
| 分切宽度精度 Slitting width precision | ±0.1mm | ±0.1mm |
| 分切极片毛刺 Slitted Pole piece burr | ＜10μm (涂布层外 out of the coating layer) | ＜10μm (涂布层外 out of the coating layer) |
| 外形尺寸 Overall size | 主机 Main machine 2450mm*1950mm*2200mm | 主机 Main machine 2300mm*1950mm*2200mm |
J8608/ZF 8米套管缠绕机
J8608/ZF 8 Meters Sleeve Winding Machine
1、卷绕长度 Winding length 8000mm（Max）
2、卷绕成品直径 Product diameter 80mm～1000mm（Max）
3、卷绕成品重量 Product weight 1500Kg（Max）
4、皱纹纸带 Crepe paper tape 整盘重 the coil weight 8Kg（Max）
宽度 Width 76mm
厚度 Thickness 0.305mm
最大外径 Max. OD 500mm
内径 ID 76mm
5、纸带张力检测与调整 The tension detection and adjustment of the paper tape
张力大小0～10Kg，自动调整Tension 0-10kg, adjust automatically
6、送纸小车的行走速度与主轴转速按工艺要求匹配，叠包率：1/2
The moving speed of the paper sending car matches with the rotation of the main shaft according to the process requirements. Overlapping ratio:1/2
7、车头中心高 Height of the head center 1250mm
8、主轴0～200rpm无级调速，并带有停车、倒转功能
0-200rpm stepless speed adjustment for the main shaft. It has the functions of stop and reversing
9、带有3个夹头自动居中的卡盘，卡盘最大夹持直径160mm
The automatically centering chuck with 3 clamping heads; Max. clamping diameter of the chuck 160mm
10、配有静电消除器，自动消除纸卷表面静电
It has electrostatic eliminator which can eliminator static electricity from the paper surface automatically
11、配有自动激光标线定位 With laser marking positioning
TYJ-160型套管电容芯子条卷机(J8616-2/ZF)
TYJ-160 Sleeve Capacitor Core Lap Former (J8616-2/ZF)
1. 卷绕长度 Winding length ≦16m
2. 卷绕成品直径 Winding product diameter 最大 Max. Ф650mm
3. 芯管外径范围 OD range of the core tube Ф81～Ф150mm
4. 芯管内径范围 ID range of the core tube Ф51～Ф130mm
5. 芯管最大长度 Max. length of the core tube 16m
6. 卷绕芯子（工件）最大重量 Max. core weight 4吨 tons
7. 包扎纸带 Bandaging tape
宽度 Width 90mm
纸卷外径 OD of the paper coil Ф470mm
纸卷内径 ID of the paper coil Ф76mm
平板纸带厚度 Flat paper tape 0.09～0.13mm
皱纹纸带厚度 Crepe paper tape 0.305mm；延伸率 Elongation 55%
8. 放纸小车一次可装纸盘6盘纸卷；可装铝箔卷1盘
6 paper coils can be installed in the paper seeding car; 1 aluminum foil coil can be installed
9. 纸带张力检测与调整
平板纸带 Flat paper tape 自动/手动调整 Automatically/Manually adjustment
皱纹纸带 Crepe paper tape 自动调整 Automatically adjustment
10. 放纸小车的行走速度与主轴转速按工艺要求匹配，叠包率：50%±0.5mm
The moving speed of the paper sending car matches with the rotation of the main shaft according to the process requirements. Overlapping ratio: 50%±0.5mm
11. 车头中心高 The height of the head center 1180mm
12. 主轴10～240rpm无级调速，有刹车离合装置
10-240rpm stepless speed adjustment for the main shaft; with the brake clutch device
13. 配有静电消除装置，自动消除纸卷表面静电
It has electrostatic eliminator which can eliminator static electricity from the paper surface automatically
14. 配有加热辊，最高温度300℃±20℃，自动控温
It contains heating roll; Max. temperature is 300℃±20℃; automatic temperature control
15. 配有烘灯，烘烤长度16m，加热管双排26根。距离工件200mm处温度为70±5℃
It has the oven lamp with 16m bake length. 26 pcs of the heating tubes in two rows. The temperature is 70±5℃ 200mm away from the workpiece
16. 配有自动激光标线，两端定位，距离15m。自动移动范围，左端0-7300mm，右端4200-15000mm；标线重复精度1mm
It has the automatic laser marking positioning in two ends. The distance is 15 m. the automatic moving range, left end 0-7300mm, right end 4200-15000mm; Marking repeatability is 1mm
J83-6/ZF型3米套管卷绕机
J83-6/ZF 3 Meters Sleeve Winding Machine
1. 卷绕能力 Winding capability 0～20m/min
2. 套管外径 Sleeve OD MaxΦ220mm
3. 卷绕宽度 Winding width Max3000mm
4. 托辊加热温度 Supporting roller heating temperature 50℃～150℃
5. 芯管内径 Core tube ID Min Φ26mm、Max Φ94mm
6. 芯管外径 Core tube OD Min Φ37mm、Max Φ101mm
7. 芯管长度 Core tube length Min 1220mm、Max 3370mm
8. 纸张预干燥 Paper pre-drying 由红外加热器加热 heated by infrared heater
9. 铝箔插入点激光自动指示
Laser automatic indication in the insertion point of the aluminum foil 指示范围 indication range 左 left 0～1m，右 right 0.6～3m
10. 原纸卷重量 Paper coil weight Max 600Kg
11. 原纸卷外径 Paper coil OD Max 600mm
12. 纸卷內孔直径 Inner hole diameter of the paper coil Φ76mm、Φ90mm
13. 纸张宽度 Paper width
平板纸 Flat paper 3m/2m/1m
皱纹纸 Crepe paper 1.5m×2
14. 纸张厚度 Paper thickness 平板纸 Flat paper 0.09～0.15mm; 皱纹纸 Crepe paper 0.305mm
15 .平板纸纸张张力 Flat paper tension Max 500N/m

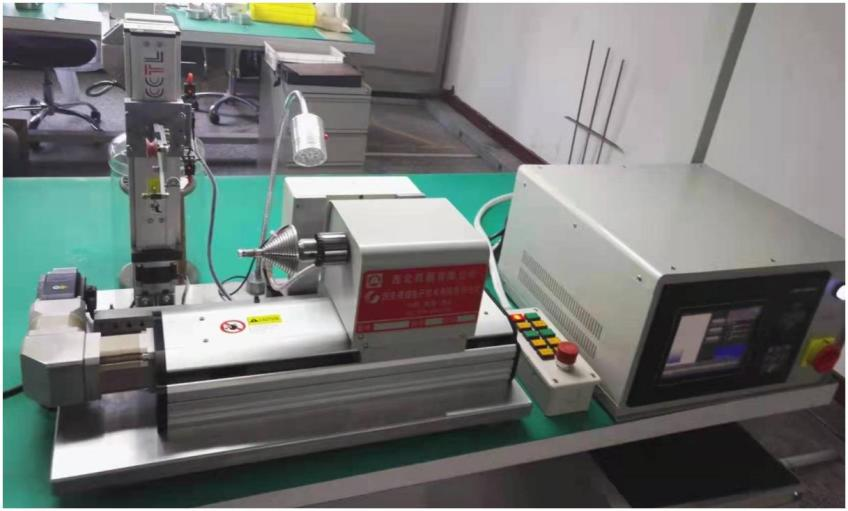

J8008-10/ZF 型多元件线圈绕线机
J8008-10/ZF Multicomponent Winding Machine
| 绕线转速 Winding speed | 0～200rpm,无极可调 |
| 绕制材料 Winding material | 漆包线 |
| 绕制线径 Winding diameter | 0.05mm～0.35mm |
| 工位数 Work position number | 等径或变径单元，数量≤30 个 Equal diameter or different diameter, quantity ≤30 |
| 排线行程 Traverse stroke | ≥200mm |
| 排线宽度 Traverse width | 0.05mm～1mm |
| 匝数精度 Turns precision | ±0.5 匝turns |
| 电源电压 Power voltage | AC220V±5%,50Hz/(60Hz) |
| 设备总功率 Total power | ≤1.5KW |
| 安全标准 Safety standard | 符合 CE 要求 Conform to CE requirements |
| 设备外形 Overall size | 600X400X400(mm) |
| 设备能满足工装为塔型（变径）及圆柱型（等径）多组元件的绕制。 The equipment can meet the winding requirements of many components in tower shape (different diameter) and column shape (equal diameter). |
| 该设备将绕线机构和排线机构合为一体，绕线主轴边旋转绕线边沿 X 轴向移动，实现绕排一体。 This equipment combines the winding mechanism and traverse mechanism together. The winding main shaft winds with rotation as moves in X-axis direction to realize the winding and traversing in one. |
| 该设备的放线机构增加了 Z 向升降功能，从而实现多组不等经塔型元件的自动跨槽连续绕制功能。 The equipment adds Z direction lifting function in the pay-off mechanism, which can realize groove crossing continuous winding automatically for different diameter tower shape components. |

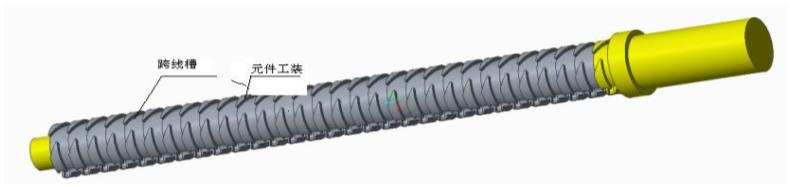

| 该设备绕制工装的设计，在工装基础上增加自动跨线槽，实现多个元件的连续绕制。 The equipment adds the wire groove crossing on the basis of tooling which can realize continuous winding for many components. |
| 该设备采用 CNC 数控系统，根据不同产品及工艺要求调用不同程序，操作极其方便。 This equipment adopts CNC numerical control system. It will call the different programme according to the different products and technique requirements. It can operate conveniently. |
P74009/ZF 型红外焦平面探测器自动粘片机
P74009/ZF Infrared Focal Plane Detector Automatic Die Bonder
| 玻璃基板尺寸 Glass base plate size | 3″/4″/6″，厚度 thickness 4mm～7mm |
| 晶片材料 Crystal chip material | 碲锌镉、锑化铟 CdZnTe、 InSn |
| 晶片尺寸 Crystal chip size | 规则晶片 Regular crystal chip 3×10mm（Min）80×80mm（Max） 不规则晶片 Irregular crystal chip（圆弧直径 Arc diameter）≤120mm |
| 加热温度 Heating temperature | 25℃～80℃（可定可调 adjustable） |
| 陪边 Edge | 规则晶片要有陪边： 4 条，宽度 4mm The regular crystal chip with edges: 4, thickness 4mm |
| 陪边要求 Edge requirement | 100 倍放大镜检测下人工辅助完成无明显缝隙拼接 Accomplish no obvious gap splicing manually under the test by 100 times magnifying glass |
| 用途：自动粘片机主要用于碲锌镉、锑化铟等红外器件晶片的自动粘接。 Application: the automatic die bonder is mainly used to bond CdZnTe and InSn Infrared crystal chip automatically. |
| 晶片上表面与基板上表面平行，允差≤2µm（晶片与基板自身平面度≤2µm） The crystal chip surface is parallel with the base plate surface. Tolerance≤2µm (Flatness of the crystal chip and the base plate ≤2µm) |
| 粘接完固化采用常温自然冷却 solidification after bonding uses natural cooling in normal temperature |
| 设备组成：设备由底座、上料机构、抓取机构、滴蜡机构、旋转载片台、挤压机构、下料机构、三维平台、大理石台面、放料工位、防护门罩和电气控制系统等组成。 The equipment composition: the base, material feeding mechanism, grab mechanism, wax dripping mechanism, rotary chip stage, extruding mechanism, unloading mechanism, 3D platform, marble table, material discharging position, protection door cover and electrical control system etc. |
